Duravit
Duofix 790mm WC Frame & Low Height Concealed Cistern
In Stock
Available now and ready for dispatch.
Delivery typically 2–5 working days.
Regular price
£246.95
We help design your perfect bathroom using 2D and 3D visuals, so you're confident before you buy. Our team is here at every step — from selecting the right fittings to aftercare support once your bathroom is complete.
Find out moreWarranty
Every product comes with the full manufacturer's warranty. We also offer the Soaque Warranty — a service guarantee that goes above and beyond the legal minimum, ensuring you receive aftercare you can trust.
Delivery
We work with trusted couriers and consolidate orders where possible. Some products are delivered kerbside on pallets — onward handling into the property is the customer's responsibility. Items may occasionally arrive separately.
Returns
You have 14 days from receipt to request a return for a full refund. Due to the specialist nature of our products, returns can be costly — we encourage you to speak with our team before ordering. Return delivery costs are the customer's responsibility.
In Stock
Available now and ready for dispatch.
Delivery typically 2–5 working days.
Regular price
£246.95
We help design your perfect bathroom using 2D and 3D visuals, so you're confident before you buy. Our team is here at every step — from selecting the right fittings to aftercare support once your bathroom is complete.
Find out moreWarranty
Every product comes with the full manufacturer's warranty. We also offer the Soaque Warranty — a service guarantee that goes above and beyond the legal minimum, ensuring you receive aftercare you can trust.
Delivery
We work with trusted couriers and consolidate orders where possible. Some products are delivered kerbside on pallets — onward handling into the property is the customer's responsibility. Items may occasionally arrive separately.
Returns
You have 14 days from receipt to request a return for a full refund. Due to the specialist nature of our products, returns can be costly — we encourage you to speak with our team before ordering. Return delivery costs are the customer's responsibility.
About this product

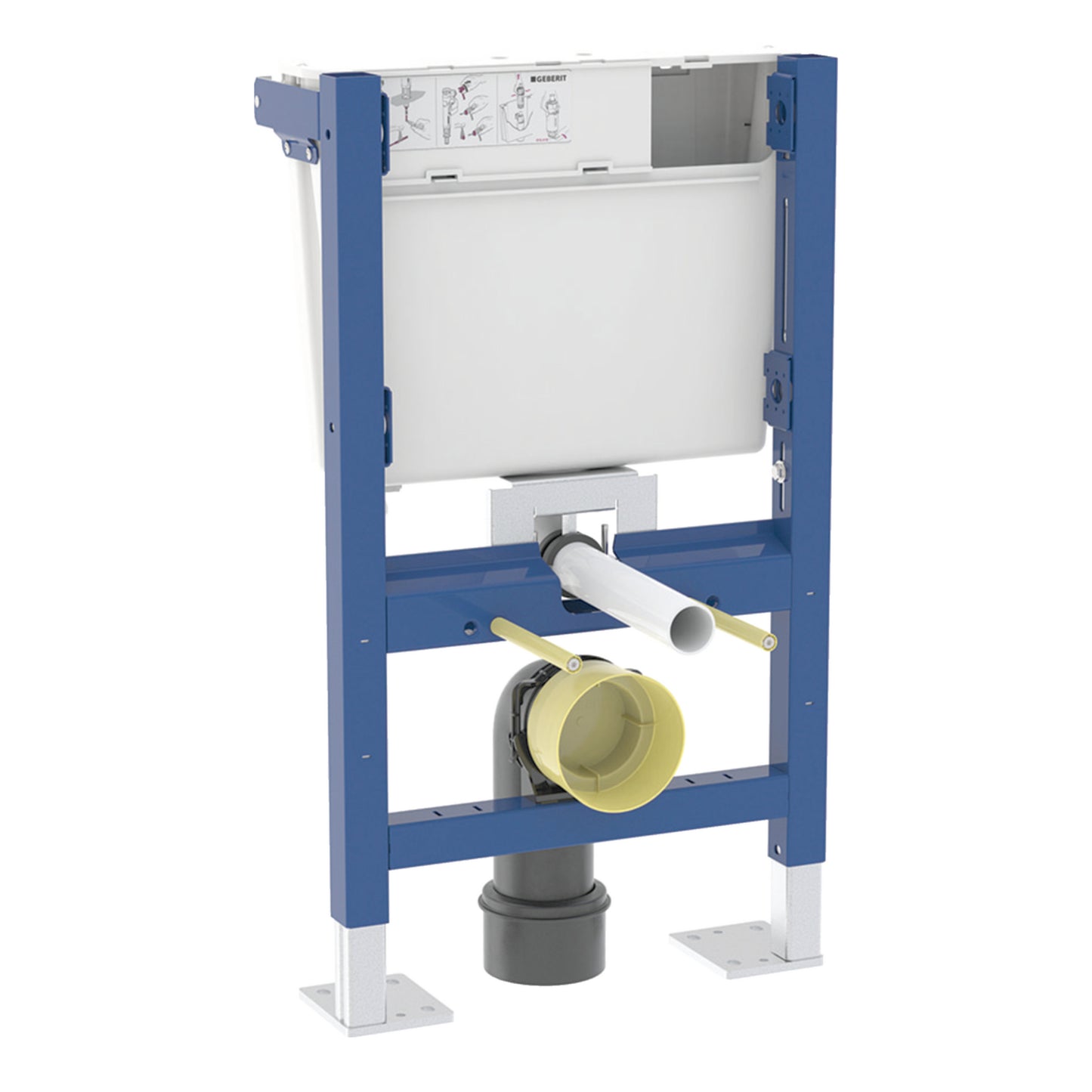

Duofix 790mm Wall-Hung WC Furniture Frame & Low-Height Cistern
From Geberit's Duofix range, this 790mm wall-hung WC furniture frame and low-height cistern is designed for installation within bathroom furniture units and part-height pre-wall constructions. Self-supporting and powder-coated for corrosion resistance, it integrates a dual-flush low-height cistern and supports wall-hung WC pans with a projection up to 620mm — ideal for compact or low-ceiling bathroom spaces.
Key Features

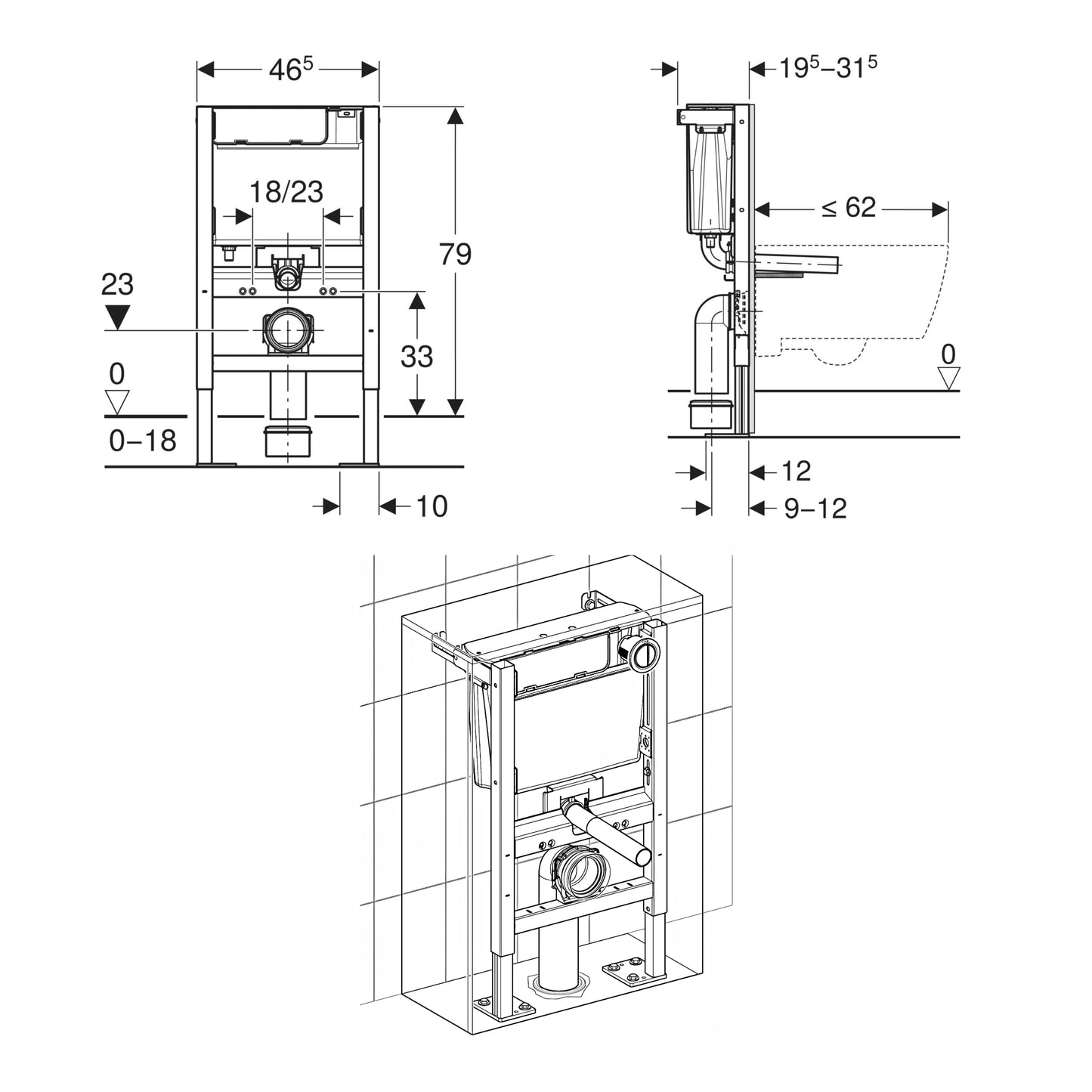

- Frame height 790mm — specifically designed for furniture unit and part-height pre-wall installations
- Low-height dual-flush cistern — factory preset at 5.8L and 3L, adjustable to 4.0L and 2.6L
- Supports wall-hung WC pans with a projection up to 620mm (EN 33 compliant)
- Pneumatic flush actuation — compatible with Geberit Type 01 and Type 10 flush buttons (sold separately)
- Self-supporting, powder-coated steel frame suitable for metal and timber stud wall constructions
- Water inlet: bottom left, ½" connection; suitable for floor constructions 0–180mm
- Not compatible with Geberit AquaClean
- Includes 90° PE-HD connection bend (ø90mm), adaptor socket, flush volume reduction cup, and fixings
Why Choose Geberit
With over 150 years of engineering expertise and more than 70 million concealed cisterns installed worldwide, Geberit is the trusted name behind some of Europe's most reliable bathroom systems. Every cistern is leak-tested before leaving the factory, and the Duofix range is designed to deliver consistent, quiet performance day after day — backed by a 50-year spare parts commitment that reflects confidence in long-term quality.
Care & Installation
Wipe with a soft cloth; avoid abrasive cleaners. Follow the enclosed installation instructions for best results.
